| Place of Origin | Call |
| Brand Name | Freescale / NXP |
| Certification | ROHS |

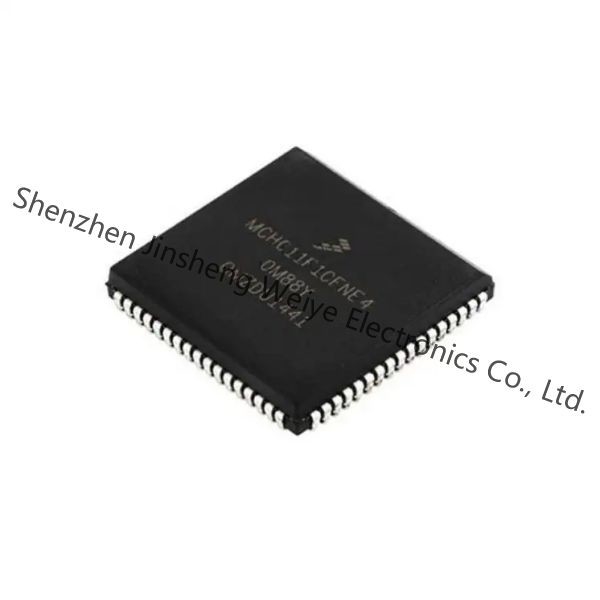

| Model Number | MCHC11F1CFNE4 |
Product Details
The MC68HC11F1 high-performance microcontroller unit (MCU) is an enhanced derivative of the M68HC11 family of microcontrollers and includes many advanced features. This MCU, with a nonmultiplexed expanded bus, is characterized by high speed and low power consumption. The fully static design allows operation at frequencies from 4 MHz to dc.
• M68HC11 Central Processing Unit (CPU)
• Power Saving STOP and WAIT Modes
• 512 Bytes Electrically Erasable Programmable Read-Only Memory (EEPROM)
• 1024 Bytes RAM, Data Retained During Standby
• Nonmultiplexed Address and Data Buses
• Enhanced 16-Bit Timer
• Three Input Capture (IC) Channels
• Four Output Compare (OC) Channels
• One Additional Channel, Selectable as Fourth IC or Fifth OC
• 8-Bit Pulse Accumulator
• Real-Time Interrupt Circuit
• Computer Operating Properly (COP) Watchdog
• Enhanced Asynchronous Nonreturn to Zero (NRZ) Serial Communications Inter face (SCI)
• Enhanced Synchronous Serial Peripheral Interface (SPI)
• Eight-Channel 8-Bit Analog-to-Digital (A/D) Converter
• Four Chip-Select Signal Outputs with Programmable Clock Stretching
— Two I/O Chip Selects
— One Program Chip Select
— One General-Purpose Chip Select
• Available in 68-Pin Plastic Leaded Chip Carrier (PLCC) and 80-Pin Plastic Quad Flat Pack (QFP)
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | NXP Semiconductors |
| Product Category | Microcontrollers |
| Series | HC11 |
| Product | MCU |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.169384 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 68-LCC (J-Lead) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 68-PLCC (25x25) |
| Number-of-I-O | 30 I/O |
| Speed | 4MHz |
| EEPROM-Size | 512 x 8 |
| Core-Processor | HC11 |
| RAM-Size | 1K x 8 |
| Program Memory | ROMless |
| Peripherals | POR, WDT |
| Connectivity | SCI, SPI |
| Voltage-Supply-Vcc-Vdd | 4.75 V ~ 5.25 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | - |
| Data-Converters | A/D 8x8b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 4.5 V to 5.5 V |
| Interface-Type | SCI SPI |
| Core | HC11 |
| Processor-Series | MC68HC11F1 |
| Data-Bus-Width | 8 bit |
| Package-Case | PLCC-68 |
| Maximum-Clock-Frequency | 4 MHz |
| Number-of-ADC-Channels | 8 ADC Channels |
| Data-RAM-Size | 1 kB |
| Number-of-Timers-Counters | 1 Timer |
| ADC-Resolution | 8 bit |
| Mfr | NXP USA Inc． |
| Package | Tube |
| Product-Status | Obsolete |
| Connectivity | SCI SPI |
| Peripherals | POR WDT |
| Number-of-I-O | 30 |
| Program-Memory-Type | ROMless |
| Voltage-Supply-Vcc-Vdd | 4．75V ~ 5．25V |
| Mounting-Type | Surface Mount |
| Package-Case | 68-LCC (J-Lead) |
| Supplier-Device-Package | 68-PLCC (24．21x24．21) |
| Base-Product-Number | MCHC11 |
