Product Details

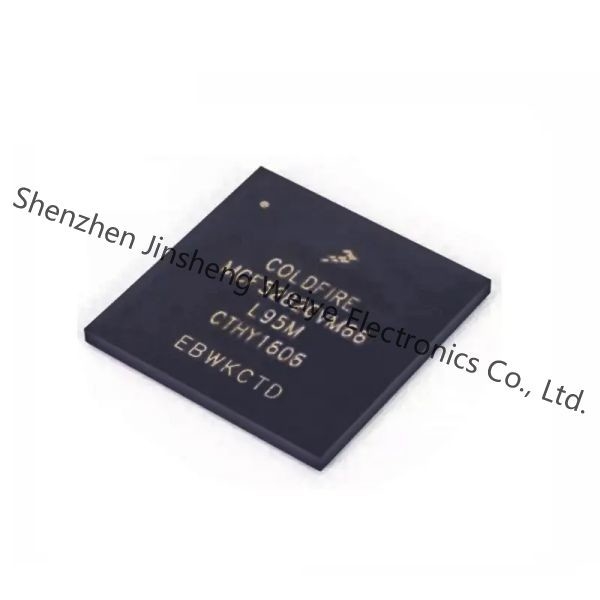

The MCF5282CVM66 is a 32-bit Microcontroller based on the ColdFire V2 core and integrated with Ethernet, CAN and flash. These devices offer advanced communications features, a rich peripheral set and a variety of supporting software and development tools. With its integrated 10/100 Mbps Ethernet MAC and network-ready applications software. The processor core is comprised of two separate pipelines that are decoupled by an instruction buffer. The two-stage instruction fetch pipeline (IFP) is responsible for instruction-address generation and instruction fetch. The instruction buffer is a first-in-first-out (FIFO) buffer that holds prefetched instructions awaiting execution in the operand execution pipeline (OEP). The OEP includes two pipeline stages. The first stage decodes instructions and selects operands (DSOC); the second stage (AGEX) performs instruction execution and calculates operand effective addresses, if needed.
Cache (KB) - 2KB I/D
System debug support
Fast Ethernet controller (FEC)
FlexCAN 2.0B module
Power-on reset (POR)
External reset
Software reset
Watchdog
I2C module - fully compatible with industry-standard I2C bus
Queued serial peripheral interface (QSPI)
Queued analog-to-digital converter (QADC)
Four 32-bit DMA timers
Two 4-channel general purpose timers
4 Periodic interrupt timers (PITs)
Software watchdog timer
Phase locked loop (PLL)
2 Interrupt controllers
DMA controller - four fully programmable channels
ColdFire V2 core delivering 76 (Dhrystone 2.1) MIPS at 80MHz running from cache/RAM
3 Universal asynchronous receive/transmitters (UARTs) with direct memory access (DMA) capability
Security
Industrial
Consumer Electronics
Automation & Process Control
Embedded Design & Development
Communications & Networking
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / NXP |
| Product Category | Microcontrollers |
| Series | MCF528x |
| Packaging | Tray |
| Unit-Weight | 0.027701 oz |
| Mounting-Style | SMD/SMT |
| Tradename | ColdFire |
| Package-Case | 256-LBGA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 256-MAPBGA |
| Number-of-I-O | 150 I/O |
| Speed | 66MHz |
| EEPROM-Size | - |
| Core-Processor | Coldfire V2 |
| RAM-Size | 64K x 8 |
| Program Memory | FLASH |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Connectivity | CAN, EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Voltage-Supply-Vcc-Vdd | 2.7 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 512KB (512K x 8) |
| Data-Converters | A/D 8x10b |
| Oscillator-Type | External |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 3.3 V to 5 V |
| Interface-Type | CAN I2C QSPI UART |
| Core | ColdFire V2 |
| Data-Bus-Width | 32 bit |
| Supply-Voltage-Max | 3.6 V |
| Supply-Voltage-Min | 2.7 V |
| Package-Case | MAPBGA-256 |
| Maximum-Clock-Frequency | 66 MHz |
| Input/output | 150 I/O |
| Data-RAM-Size | 64 kB |
| Number-of-Timers-Counters | 12 Timer |
| Mfr | Freescale Semiconductor |
| Package | Bulk |
| Product-Status | Active |
| Core-Size | 32-Bit Single-Core |
| Connectivity | CANbus EBI/EMI Ethernet I²C SPI UART/USART |
| Peripherals | DMA LVD POR PWM WDT |
| Number-of-I-O | 150 |
| Program-Memory-Type | FLASH |
| Voltage-Supply-Vcc-Vdd | 2．7V ~ 3．6V |
| Mounting-Type | Surface Mount |
| Package-Case | 256-LBGA |
| Supplier-Device-Package | 256-MAPBGA (17x17) |
| Base-Product-Number | MCF5282 |
| Mfr | NXP USA Inc． |
| Package | Tray |
| Product-Status | Not For New Designs |
