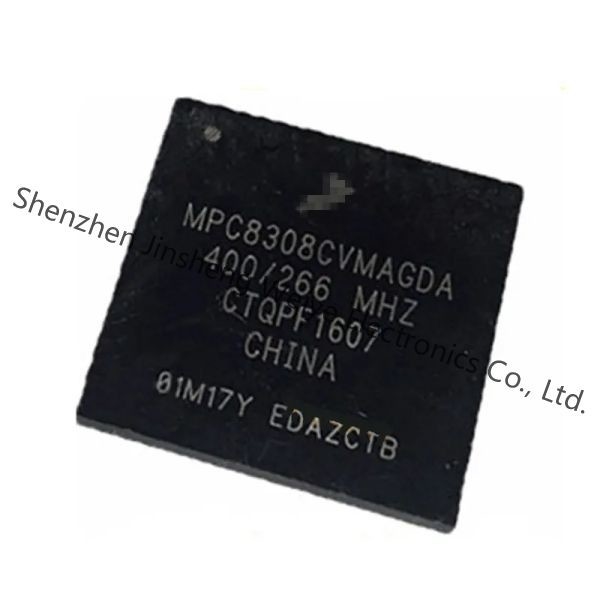

| Model Number | MPC8308VMAGDA |
Product Details
The MPC8309 incorporates the e300c3 (MPC603e-based) core built on Power Architecture® technology, which includes 16 KB of each L1 instruction and data caches, dual integer units, and on-chip memory management units (MMUs). The MPC8309 also includes a 32-bit PCI controller, two DMA engines and a 16/32-bit DDR2 memory controller with 8-bit ECC.
A new communications complex based on QUICC Engine technology forms the heart of the networking capability of the MPC8309. The QUICC Engine block contains several peripheral controllers and a 32-bit RISC controller. Protocol support is provided by the main workhorses of the device—the unified communication controllers (UCCs). A block diagram of the MPC8309 is shown in the following figure.
In summary, the MPC8309 provides users with a highly integrated, fully programmable communications processor. This helps to ensure that a low-cost system solution can be quickly developed and offers flexibility to accommodate new standards and evolving system requirements.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / NXP |
| Product Category | Microprocessors |
| Series | MPC83xx |
| Packaging | Tray |
| Unit-Weight | 0.057260 oz |
| Mounting-Style | SMD/SMT |
| Tradename | PowerQUICC |
| Package-Case | 473-LFBGA |
| Operating-Temperature | 0°C ~ 105°C (TA) |
| Supplier-Device-Package | 473-MAPBGA (19x19) |
| Memory-Type | L1 Cache |
| I/O Voltage | 1.8V, 2.5V, 3.3V |
| Speed | 400MHz |
| Core-Processor | PowerPC e300c3 |
| Bus width | 1 Core, 32-Bit |
| Co-Processors-DSP | - |
| RAM-Controllers | DDR2 |
| Graphics-Acceleration | No |
| Display-&-Interface-Controllers | - |
| Ethernet | 10/100/1000 Mbps (3) |
| SATA | - |
| USB | USB 2.0 (1) |
| Security-Features | - |
| Bus width | 1 Core |
| Maximum Operating Temperature | + 105 C |
| Operating temperature range | 0 C |
| Operating-Supply-Voltage | 1 V |
| Interface-Type | I2C JTAG UART |
| Core | e300 |
| Processor-Series | PowerQUICC II Pro |
| Data-Bus-Width | 32 bit |
| Package-Case | MAPBGA-473 |
| Maximum-Clock-Frequency | 400 MHz |
| L1-Cache-Instruction-Memory | 16 kB |
| L1-Cache-Data-Memory | 16 kB |
| I-O-Voltage | 1.8 V 2.5 V 3.3 V |
| Watchdog-Timers | No Watchdog Timer |
