| Place of Origin | Call |
| Brand Name | Cypress Semiconductor |
| Certification | ROHS |

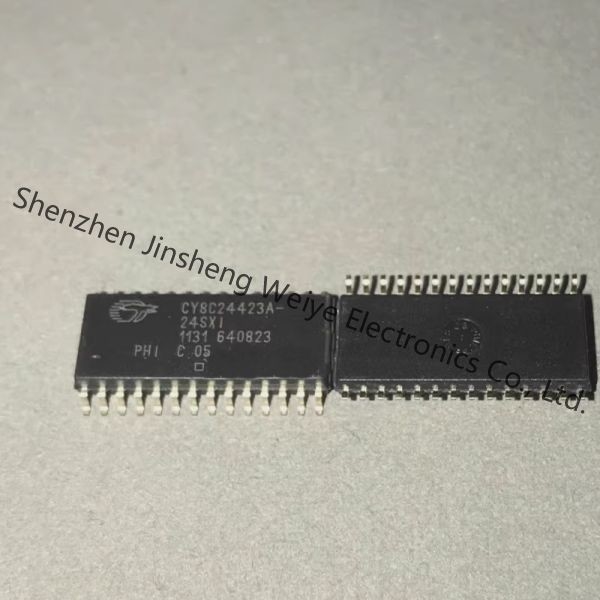

| Model Number | CY8C24423A-24SXI |
Product Details
The PSoC family consists of on-chip controller devices, which are designed to replace multiple traditional microcontroller unit (MCU)-based components with one, low cost single-chip programmable component. A PSoC device includes configurable analog and digital blocks, and programmable interconnect. This architecture allows the user to create customized peripheral configurations, to match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable I/O are included in a range of convenient pinouts.
■ Powerful Harvard-architecture processor
❐ M8C CPU with a max speed of 24 MHz
■ Operating Range: 1.71 V to 5.5 V
❐ Standby Mode 1.1 μA (Typ)
❐ Deep Sleep 0.1 μA (Typ)
■ Operating Temperature range: –40 °C to +85 °C
■ Flexible on-chip memory
❐ 8 KB flash, 1 KB SRAM
❐ 16 KB flash, 2 KB SRAM
❐ 32 KB flash, 2 KB SRAM
❐ Read while Write with EEPROM emulation
❐ 50,000 flash erase/write cycles
❐ In-system programming simplifies manufacturing process
■ Four Clock Sources
❐ Internal main oscillator (IMO): 6/12/24 MHz
❐ Internal low-speed oscillator (ILO) at 32 kHz for watchdog and sleep timers
❐ External 32 KHz Crystal Oscillator
❐ External Clock Input
■ Programmable pin configurations
❐ Up to 36 general purpose dual mode GPIO (Analog inputs and Digital I/O supported)
❐ High sink current of 25 mA per GPIO
• Max sink current 120 mA for all GPIOs
❐ Source Current
• 5 mA on ports 0 and 1
• 1 mA on ports 2,3 and 4
❐ Configurable internal pull-up, high-Z and open drain modes
❐ Selectable, regulated digital I/O on port 1
❐ Configurable input threshold on port 1
■ Versatile Analog functions
❐ Internal Low-Dropout voltage regulator for high power supply rejection ratio (PSRR)
■ Full-Speed USB
❐ 12 Mbps USB 2.0 compliant
❐ Eight unidirectional endpoints
❐ One bidirectional endpoint
❐ Dedicated 512 byte SRAM
❐ No external crystal required
■ Additional system resources
❐ I2C Slave:
• Selectable to 50 kHz, 100 kHz, or 400 kHz
❐ Configurable up to 12 MHz SPI master and slave
❐ Three 16-bit timers
❐ Watchdog and sleep timers
❐ Integrated supervisory circuit
❐ 10-bit incremental analog-to-digital converter (ADC) with internal voltage reference
❐ Two general-purpose Comparators
• 3 Voltage References (0.8 V, 1 V, 1.2 V)
• Any pin to either comparator inputs
• Low-power operation at 10 µA
❐ One 8-bit IDAC with full scale range of 512 µA
❐ One 8-bit Software PWM
■ Development Platform
❐ PSoC Designer™ IDE
■ GPIOs and Package options
❐ 13 GPIOs - QFN 16
❐ 28 GPIOs - QFN 32
❐ 34 GPIOs - QFN 48
❐ 36 GPIOs - QFN 48
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Cypress Semiconductor |
| Product Category | Microcontrollers |
| Series | PSOCR1 CY8C24xxx |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.078125 oz |
| Mounting-Style | SMD/SMT |
| Tradename | PSoC |
| Package-Case | 28-SOIC (0.295", 7.50mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 28-SOIC |
| Number-of-I-O | 24 I/O |
| Speed | 24MHz |
| EEPROM-Size | - |
| Core-Processor | M8C |
| RAM-Size | 256 x 8 |
| Program Memory | FLASH |
| Peripherals | POR, PWM, WDT |
| Connectivity | I2C, SPI, UART/USART |
| Voltage-Supply-Vcc-Vdd | 2.4 V ~ 5.25 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | 4KB (4K x 8) |
| Data-Converters | A/D 2x14b; D/A 2x9b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 2.4 V to 5.25 V |
| Interface-Type | I2C SPI UART |
| Core | M8C |
| Processor-Series | CY8C24x23A |
| Data-Bus-Width | 8 bit |
| Supply-Voltage-Max | 5.25 V |
| Supply-Voltage-Min | 2.4 V |
| Package-Case | SOIC-28 |
| Maximum-Clock-Frequency | 24 MHz |
| Number-of-ADC-Channels | 6 ADC Channels |
| Input/output | 24 I/O |
| Data-RAM-Size | 256 B |
| Number-of-Timers-Counters | 2 Timer |
| ADC-Resolution | 14 bit |
| Data-RAM-Type | SRAM |
