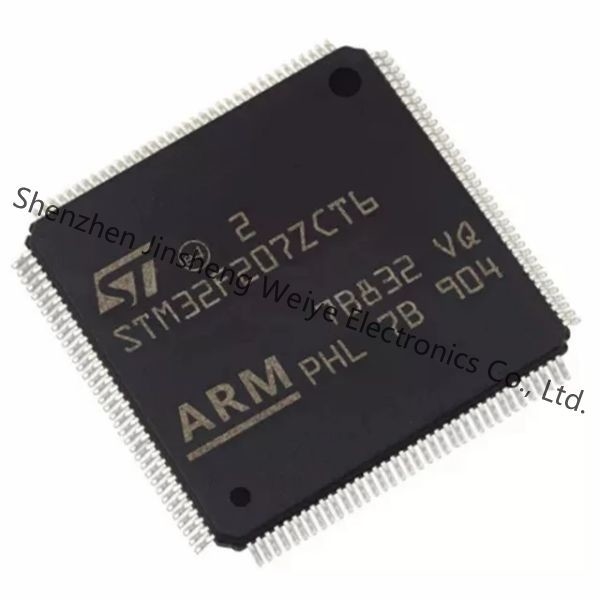

The STMicroelectronics STM32F207ZCT6 is a high-performance, low-power microcontroller designed to provide efficient and reliable solutions for an array of embedded applications. The 32-bit core operates at a maximum frequency of up to 120MHz and features 256KB of Flash memory, 72KB of SRAM, along with a range of integrated peripherals including USB OTG, Ethernet MAC, and CAN, as well as a variety of digital and analog peripherals. The 144LQFP package also provides many options in terms of connectivity, with support for multiple banks of 32-bit GPIOs, multiple UARTs and SPI interfaces, and an 12-bit ADC. This combination of applications enables the STM32F207ZCT6 to drive a plethora of applications, ranging from low-power IoT applications including energy monitoring, home automation, and security systems to more demanding applications such as industrial motor control. With its low power consumption and long-term availability, the STM32F207ZCT6 is an excellent choice for a range of embedded applications.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Microcontrollers |
| Series | STM32 F2 |
| Packaging | Tray |
| Unit-Weight | 0.045518 oz |
| Mounting-Style | SMD/SMT |
| Tradename | STM32 |
| Package-Case | 144-LQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 144-LQFP (20x20) |
| Number-of-I-O | 114 I/O |
| Speed | 120MHz |
| EEPROM-Size | - |
| Core-Processor | ARMR CortexR-M3 |
| RAM-Size | 132K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Connectivity | CAN, Ethernet, I2C, IrDA, LIN, Memory Card, SPI, UART/USART, USB OTG |
| Voltage-Supply-Vcc-Vdd | 1.8 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 256KB (256K x 8) |
| Data-Converters | A/D 24x12b, D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.8 V to 3.6 V |
| Interface-Type | I2C IrDA LIN SPI USART |
| Core | ARM Cortex M3 |
| Processor-Series | ARM Cortex-M |
| Data-Bus-Width | 32 bit |
| Package-Case | LQFP-144 |
| Maximum-Clock-Frequency | 120 MHz |
| Number-of-ADC-Channels | 12 ADC Channels |
| Input/output | 114 I/O |
| Data-RAM-Size | 96 kB |
| Data-ROM-Size | 512 B |
| Number-of-Timers-Counters | 14 Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
