| Place of Origin | Call |
| Brand Name | ZILOG |
| Certification | ROHS |

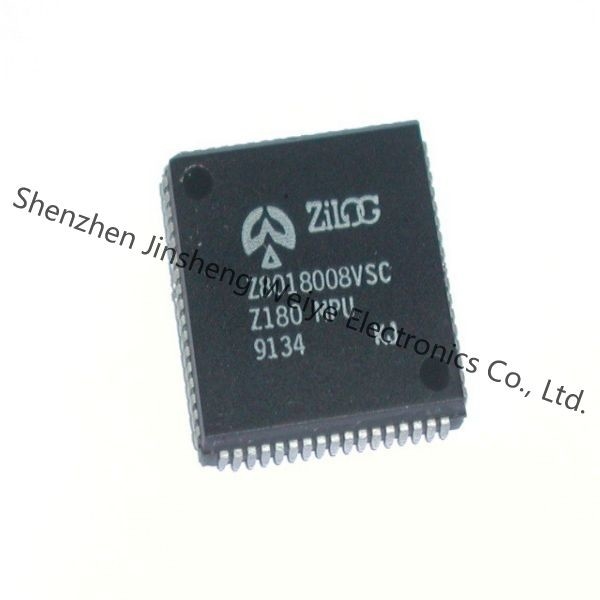

| Model Number | Z8018008VSC |
Product Details
The enhanced Z80180/Z8S180/Z8L180™ significantly improves on the previous Z80180 models while still providing full backward compatibility with existing Zilog Z80 devices. The Z80180/Z8S180/Z8L180 now offers faster execution speeds, power saving modes, and EMI noise reduction.
■ Code Compatible with Zilog Z80® CPU
■ Extended Instructions
■ Two Chain-Linked DMA Channels
■ Low Power-Down Modes
■ On-Chip Interrupt Controllers
■ Three On-Chip Wait-State Generators
■ On-Chip Oscillator/Generator
■ Expanded MMU Addressing (up to 1 MB)
■ Clocked Serial I/O Port
■ Two 16-Bit Counter/Timers
■ Two Enhanced UARTs (up to 512 Kbps)
■ Clock Speeds: 6, 8, 10, 20, 33 MHz
■ Operating Range: 5V (3.3V@ 20 MHz)
■ Operating Temperature Range: 0°C to +70°C
■ -40°C to +85°C Extended Temperature Range
■ Three Packaging Styles
– 68-Pin PLCC
– 64-Pin DIP
– 80-Pin QFP
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ZILOG |
| Product Category | Microprocessors |
| Series | Z180 |
| Packaging | Tube |
| Package-Case | 68-LCC (J-Lead) |
| Operating-Temperature | 0°C ~ 70°C (TA) |
| Supplier-Device-Package | 68-PLCC |
| I/O Voltage | 5.0V |
| Speed | 8MHz |
| Core-Processor | Z80180 |
| Bus width | 1 Core, 8-Bit |
| Co-Processors-DSP | - |
| RAM-Controllers | DRAM |
| Graphics-Acceleration | No |
| Display-&-Interface-Controllers | - |
| Ethernet | - |
| SATA | - |
| USB | - |
| Security-Features | - |
