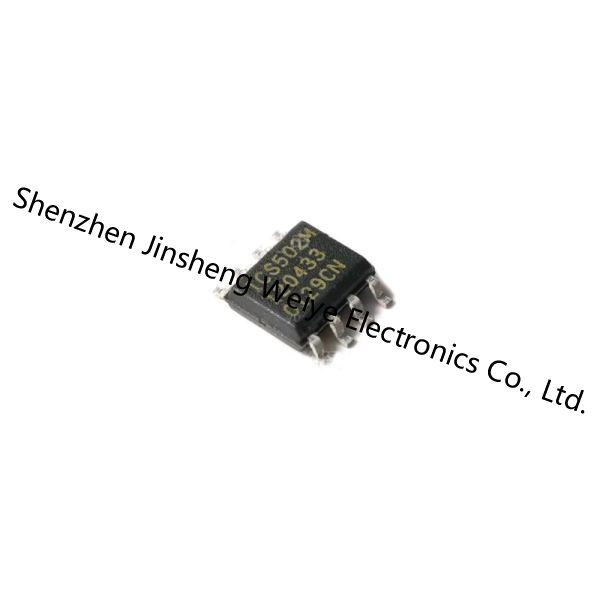

ICS502M Clock Generator, 190Mhz, Cmos IC CLOCK GENERATOR 8SOIC
  • ICS502M Clock Generator, 190Mhz, Cmos IC CLOCK GENERATOR 8SOIC
ICS502M Clock Generator, 190Mhz, Cmos IC CLOCK GENERATOR 8SOIC

ICS502M Clock Generator, 190Mhz, Cmos IC CLOCK GENERATOR 8SOIC

Place of Origin Call
Brand Name Integrated Circuit Systems
Certification ROHS
Model Number ICS502M
Product Details
Product Name:
ICS502M
Condition:
Original 100%
Installation Methodpe:
190MHz Surface Mount
Package:
8-SOIC (0.154", 3.90mm Width)
Voltage - Supply:
International Standard
Max. Reverse Current:
International Standard
Application:
Clock Generators And Frequency Synthesizers
Product Description

                                                                  ICS502M Clock Generator, 190Mhz, Cmos IC CLOCK GENERATOR 8SOIC 0ICS502M Datasheet

Product Details

The ICS512 is the most cost effective way to generate a high-quality, high frequency clock output and a reference clock from a lower frequency crystal or clock input. The name LOCO stands for Low Cost Oscillator, as it is designed to replace crystal oscillators in most electronic systems.


Using Phase-Locked-Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 200 MHz. With a reference output, this chip plus an inexpensive crystal can replace two oscillators Stored in the chip’s ROM is the ability to generate nine different multiplication factors, allowing one chip to output many common frequencies (see table on page 2).

Specifications


Attribute Attribute Value
Manufacturer Integrated Circuit Systems
Product Category Clock Generators and Frequency Synthesizers
Series LOCO™
Type Clock Generator
Packaging  Tube
Package-Case 8-SOIC (0.154", 3.90mm Width)
Operating-Temperature 0°C ~ 70°C
Mounting-Type Surface Mount
Voltage-Supply  3 V ~ 5.5 V
Supplier-Device-Package 8-SOIC
PLL Yes
Input Clock, Crystal
Output CMOS
Number-of-Circuits 1 Circuit
Ratio of output to input 1899/12/30 2:02:00
Differential-Input:Output No/No
Frequency-Max 190MHz
Divider-Multiplier No/Yes


Descriptions

IC PLL CLK MULTIPLIER 8-SOIC
