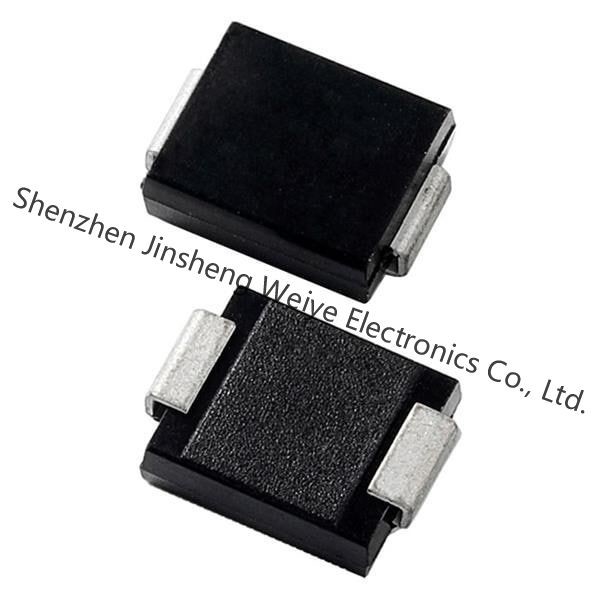

SMCJ40CA ESD Suppressors / TVS Diodes 1500W TVS Bidirectionai
  • SMCJ40CA ESD Suppressors / TVS Diodes 1500W TVS Bidirectionai

SMCJ40CA ESD Suppressors / TVS Diodes 1500W TVS Bidirectionai

Place of Origin Call
Brand Name Bourns
Certification ROHS
Model Number SMCJ40CA
Product Details
Product Name:
SMCJ40CA
Condition:
Original 100%
Installation Methodpe:
TVS DIODE 40VWM 64.5VC
Package:
DO-214AB-2 (SMC)
Voltage - Supply:
International Standard
Max. Reverse Current:
International Standard
Application:
TVS Diodes
Product Description

                                                                  SMCJ40CA ESD Suppressors / TVS Diodes 1500W TVS Bidirectionai 0SMCJ40CA Datasheet

Product Details

Stand-off Voltage : 5.0 to 188V

Peak Pulse Power : 1500 W





FEATURES :

* 1500W surge capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time : typically less then 1.0 ps from 0 volt to VBR(min.)
* Typical IR less then 1mA above 10V

Specifications

Attribute Attribute Value
Manufacturer Bourns
Product Category TVS Diodes
Series SMCJ
Type Zener
Packaging  Alternate Packaging
Part-Aliases SMCJ40CA_NL
Unit-Weight  0.007408 oz
Mounting-Style SMD/SMT
Termination-Style SMD/SMT
Operating-Temperature-Range  - 65 C to + 150 C
Height 2.62 mm
Length 8.13 mm
Width 6.22 mm
Package-Case DO-214AB, SMC
Operating-Temperature  -55°C ~ 150°C (TJ)
Mounting-Type Surface Mount
Applications General Purpose
Supplier-Device-Package SMC (DO-214AB)
Unidirectional-Channels -
Bidirectional-Channels 1
Voltage-Reverse-Standoff-Typ  40V
Breakdown Voltage  44.4V
Clamping Voltage  64.5V
Current-Peak-Pulse-10-1000μs  23.3A
Power-Peak-Pulse 1500W (1.5kW)
Power-Line-Protection  No
Capacitance-Frequency  -
Pd-Power-Dissipation  1.5 kW
Maximum Operating Temperature  + 150 C
Operating temperature range  - 65 C
Breakdown-Voltage  49.1 V
Clamping-Voltage 64.5 V
Peak-Surge-Current  23.3 A
Working-Voltage  40 V
Polarity Bidirectional

Descriptions

TVS DIODE 40VWM 64.5VC SMC
Diode TVS Single Bi-Dir 40V 1.5KW 2-Pin SMC T/R
TVS Diodes - Transient Voltage Suppressors 1500W TVS Bidirectional
