Product Details

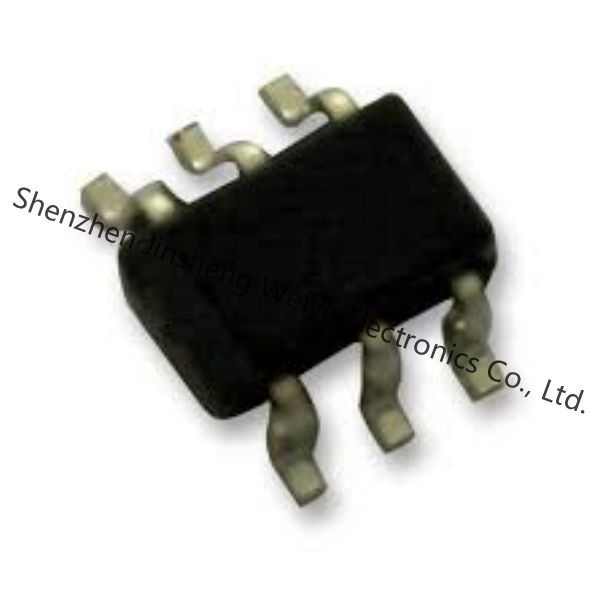

ESD Protection Diode Array, 5-Line
This 5−line surge protection array is designed for application requiring transient voltage protection capability. It is intended for use in over−transient voltage and ESD sensitive equipment such as computers, printers, automotive electronics, networking communication and other applications. This device features a monolithic common anode design which protects five independent lines in a single SC−88 package.
• Protects up to 5−Line in a Single SC−88 Package
• Peak Power Dissipation − 100 W (8 x 20 s Waveform)
• ESD Rating of Class 3B (Exceeding 8 kV) per Human Body Model
and Class C (Exceeding 400 V) per Machine Model.
• Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8 kV (Contact)
• Flammability Rating of UL 94 V−0
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• Pb−Free Packages are Available*
• Hand−Held Portable Applications
• Networking and Telecom
• Automotive Electronics
• Serial and Parallel Ports
• Notebooks, Desktops, Servers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | TVS Diodes |
| Series | Automotive, AEC-Q101 |
| Type | Zener |
| Packaging | Cut Tape (CT) Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Termination-Style | SMD/SMT |
| Length | 2 mm |
| Width | 1.25 mm |
| Package-Case | 6-TSSOP, SC-88, SOT-363 |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Applications | Automotive |
| Number-of-Channels | 5 Channel |
| Supplier-Device-Package | SC-88/SC70-6/SOT-363 |
| Unidirectional-Channels | 5 |
| Bidirectional-Channels | - |
| Voltage-Reverse-Standoff-Typ | 15V (Max) |
| Breakdown Voltage | 17V |
| Clamping Voltage | 29V |
| Current-Peak-Pulse-10-1000μs | 5A (8/20μs) |
| Power-Peak-Puls | 100W |
| Power-Line-Protection | No |
| Capacitance-Frequency | 33pF @ 1MHz |
| Pd-Power-Dissipation | 100 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Breakdown-Voltage | 17 V |
| Clamping-Voltage | 29 V |
| Peak-Surge-Current | 5 A |
| Cd-Diode-Capacitance | 33 pF |
| Working-Voltage | 15 V |
| Polarity | Unidirectional |
