These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines.

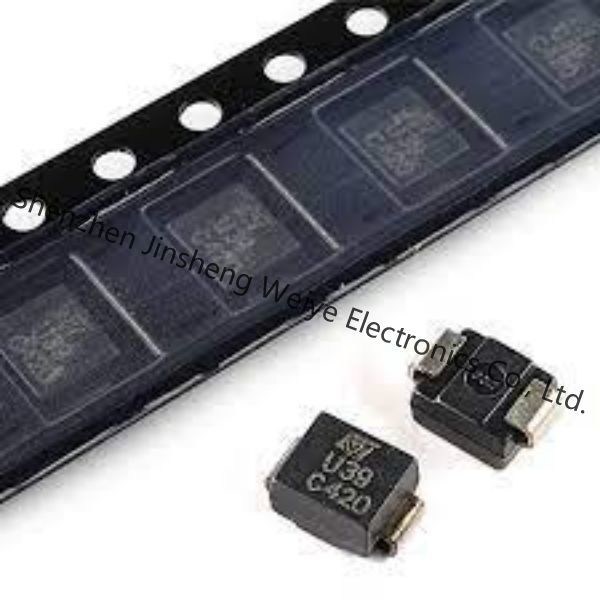

They are available in SMA, SMB and DO-15 packages.
■ Bidirectional crowbar protection
■ Voltage range from 62V to 270V
■ Low capacitance from 12pF to 20pF @ 50V
■ Low leakage current : IR = 2µA max
■ Holding current: IH = 150 mA min
■ Repetitive peak pulse current :
IPP = 50 A (10/1000µs)
Telecommunication equipment such as:
■ Analog and digital line cards (xDSL, T1/E1,
ISDN, ...)
■ Terminals (phone, fax, modem, ...) and central
office equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | TVS - Thyristors |
| Series | SMP, TRISIL™ |
| Product | Board Level Protection |
| Type | Arrester Surge/Lightning |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.003880 oz |
| Brand | STMicroelectronics |
| For-Use-With | Telecomm |
| Termination-Style | SMD/SMT |
| Mounting | SMD/SMT |
| Length | 4.6 mm |
| Width | 3.95 mm |
| Package-Case | DO-214AA, SMB |
| Capacitance | 25pF |
| Number-of-Elements | 1 Element |
| Voltage-Breakover | 360V |
| Voltage-Off-State | 270V |
| Current-Peak-Pulse-10-1000μs | 50A |
| Voltage-On-State | - |
| Current-Peak-Pulse-8-20μs | 150A |
| Holding Current | 150mA |
