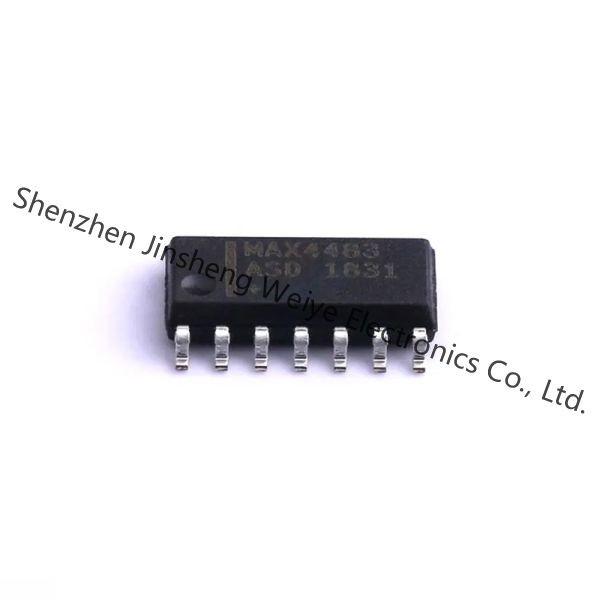

MAX4483ASD Operational Amplifiers - Op Amps Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdow
  • MAX4483ASD Operational Amplifiers - Op Amps Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdow

MAX4483ASD Operational Amplifiers - Op Amps Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdow

Place of Origin Call
Brand Name Maxim Integrated
Certification ROHS
Model Number MAX4483ASD
Product Details
Product Name:
MAX4483ASD
Condition:
Original 100%
Installation Methodpe:
IC OPAMP GP 140KHZ RRO
Package:
14-SOIC (0.154", 3.90mm Width)
Voltage - Supply:
International Standard
Max. Reverse Current:
International Standard
Application:
Instrumentation Amplifier
Product Description

                                                                            MAX4483ASD Operational Amplifiers - Op Amps Single/Dual/Quad, Low-Cost, Single-Supply, Rail-to-Rail Op Amps with Shutdow 0MAX4483ASD Datasheet



Product Details

General Description

The MAX4480–MAX4483 low-cost, general-purpose op amps offer rail-to-rail outputs, draw only 50µA of quiescent current, and operate from a single +2.5V to +5.5V supply. For additional power conservation, the MAX4481 offers a low-power shutdown mode that reduces supply current to 0.5µA (max) and puts the amplifier’s output in a high-impedance state. These devices are unity-gain stable with capacitive loads up to 400pF. The MAX4480– MAX4483 are specified to +125°C, making them suitable for use in a variety of harsh environments, such as automotive applications.



Features

♦ Single +2.5V to +5.5V Supply Voltage Range
♦ 50µA Quiescent Current per Amplifier
♦ 0.5µA (max) Shutdown Mode (MAX4481)
♦ Available in Space-Saving Packages
5-Pin SC70 (MAX4480)
6-Pin SC70 (MAX4481)
8-Pin SOT23 (MAX4482)
♦ 105dB AVOL with 5kΩ Load
♦ 0.005% THD with 100kΩ Load
♦ Rail-to-Rail Output Voltage Swing
♦ 3.0mA of Sink and Source Load Current
♦ Unity-Gain Stable up to CLOAD = 400pF

Specifications

Attribute Attribute Value
Manufacturer Maxim Integrated
Product Category Instrumentation Amplifier
Categories Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Manufacturer Maxim Integrated
Serie -
Packaging  Tube
Part-Status  Obsolete
Amplifier-Type General Purpose
Number-of-Circuits 4 Circuits
Output-Type  Rail-to-Rail
Slew-Rate  0.08 V/?s
Gain-Bandwidth-Product  140kHz
Current-Input-Bias 0.1pA
Voltage-Input-Offset 1mV
Current-Supply 50?A
Current-Output-Channel 17mA
Voltage-Supply-Single-Dual-± 2.5 V ~ 5.5 V, ±1.25 V ~ 2.75 V
Operating-Temperature  -40°C ~ 125°C
Mounting-Type Surface Mount
Package-Case 14-SOIC (0.154", 3.90mm Width)
Supplier-Device-Package 14-SOIC
Base-Part-Number MAX4483

Descriptions
General Purpose Amplifier 4 Circuit Rail-to-Rail 14-SOIC
