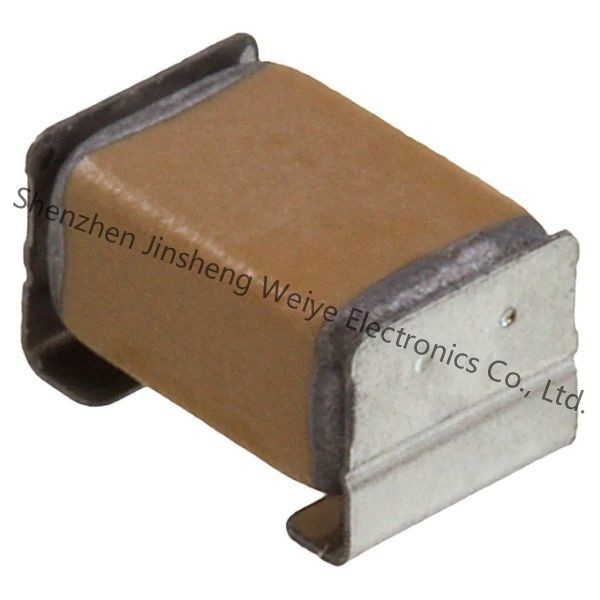

CKG57KX7R2E105M335JJ Special Ceramic Capacitor CKG 2220 250V 1uF 20% 3.35mm AECQ200

                                                CKG57KX7R2E105M335JJ Datasheet

Product Details

MULTILAYER CERAMIC CHIP CAPACITORS

Automotive Grade, MEGACAP Type

■ SERIES OVERVIEW

TDK multilayer ceramic chip capacitor CKG series is a product which metal-frames are connected to terminations of MLCC, and it is also called MEGACAP.
MEGACAP has higher mechanical endurance by the flexible metal-frame structure which absorbs thermal and mechanical stress.
Also the stacked type is effective in mounting area reduction because twice capacitance is realized by double-stacked structure without changing footprint.

■ FEATURES

• Higher mechanical endurance is realized by metal-frame structure.
• Twice capacitance is realized by double-stacked structure without
changing footprint.
• Lower ESR and ESL than Al caps.
• C0G temperature characteristic which has excellent stable temperature
and DC-bias characteristcs is applicable.
• Mounting on Al board is applicable.

■ APPLICATIONS

• DC-DC converters, inverters, battery chargers, EPS, ABS, EV, HEV,
HID lamp, etc..
• Smoothing circuits.
• The places where Al electrolytic or Film capacitor is not suitable
because of higher ESR/ESL, heat resistivity, or its size.
• The C0G temperature characteristic is suitable for the high-reliability
circuits such as time constant, filter, resonance, oscillation and snub
ber circuits.
