| Place of Origin | Call |
| Brand Name | Analog Devices |
| Certification | ROHS |

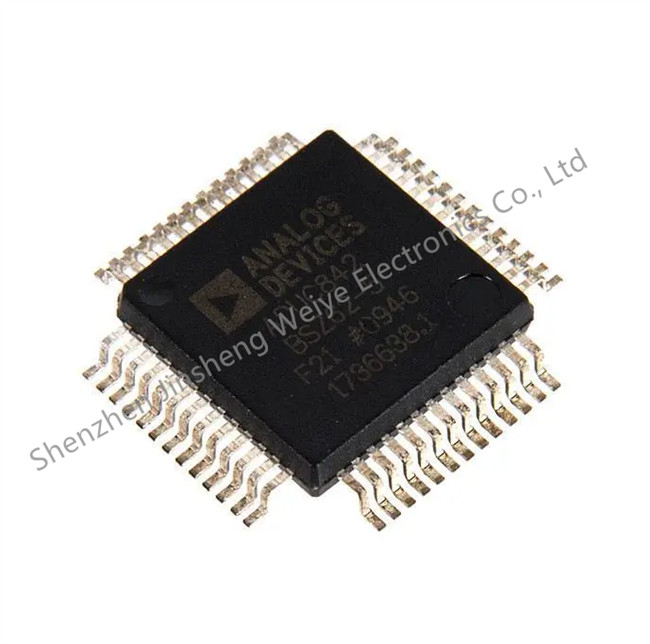

| Model Number | ADUC842BSZ62-5 |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Microcontrollers |
| Series | MicroConverter® ADuC8xx |
| Packaging | Tray |
| Unit-Weight | 0.017496 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 52-QFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 52-MQFP (10x10) |
| Number-of-I-O | 32 I/O |
| Speed | 16.78MHz |
| EEPROM-Size | - |
| Core-Processor | 8052 |
| RAM-Size | 2.25K x 8 |
| Program Memory | FLASH |
| Peripherals | DMA, PSM, PWM, Temp Sensor, WDT |
| Connectivity | I2C, SPI, UART/USART |
| Voltage-Supply-Vcc-Vdd | 4.75 V ~ 5.25 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | 62KB (62K x 8) |
| Data-Converters | A/D 8x12b, D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Interface-Type | I2C/SPI/UART |
| Core | 8052 |
| Processor-Series | ADUC842 |
| Data-Bus-Width | 8 bit |
| Supply-Voltage-Max | 5.25 V |
| Supply-Voltage-Min | 4.75 V |
| Package-Case | QFP-52 |
| Maximum-Clock-Frequency | 16 MHz |
| Number-of-ADC-Channels | 8 ADC Channels |
| Input/output | 34 I/O |
| Data-RAM-Size | 2304 B |
| Number-of-Timers-Counters | 3 Timer |
| ADC-Resolution | 12 bit |
