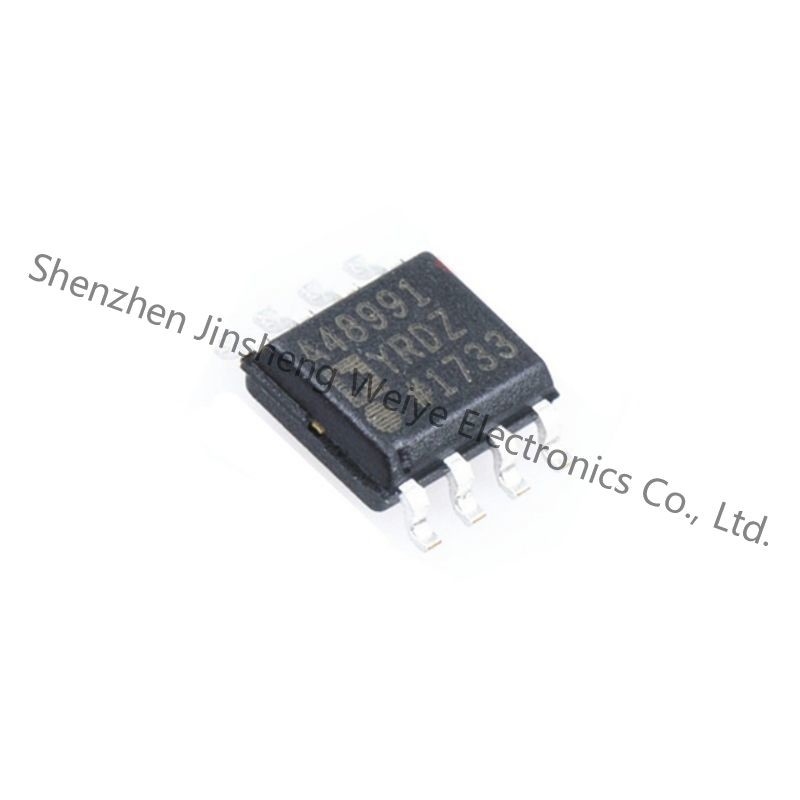

ADA4899-1YRDZ High Speed Operational Amplifiers IC Ultra Low Noise and Distortion Hi Speed
  • ADA4899-1YRDZ High Speed Operational Amplifiers IC Ultra Low Noise and Distortion Hi Speed

ADA4899-1YRDZ High Speed Operational Amplifiers IC Ultra Low Noise and Distortion Hi Speed

Place of Origin Call
Brand Name Analog Devices
Certification ROHS
Model Number ADA4899-1YRDZ
Product Details
Product Name:
ADA4899-1YRDZ
Condition:
Original 100%
Installation Methodpe:
Op Amp Single High Speed Amplifier
Package:
8-Pin SOIC N EP Tube
Voltage - Supply:
International Standard
Max. Reverse Current:
International Standard
Application:
General Purpose Amplifier IC
Product Description


                                                                            ADA4899-1YRDZ High Speed Operational Amplifiers IC Ultra Low Noise and Distortion Hi Speed 0ADA4899-1YRDZ Datasheet

GENERAL DESCRIPTION

The ADA4870 is a unity gain stable, high speed current feedback amplifier capable of delivering 1 A of output current and 2500 V/μs slew rate from a 40 V supply. Manufactured using the Analog Devices, Inc., proprietary high voltage extra fast complementary bipolar (XFCB) process, the innovative architecture of the ADA4870 enables high output power, high speed signal processing solutions in applications that require driving a low impedance load.
The ADA4870 is ideal for driving high voltage power FETs, piezo transducers, PIN diodes, CCD panels, and a variety of other demanding applications that require high speed from high supply voltage at high output current.
The ADA4870 is available in a power SOIC package (PSOP_3), featuring an exposed thermal slug that provides high thermal conductivity, enabling efficient heat transfer for improved perfor mance and reliability in demanding applications. The ADA4870 operates over the industrial temperature range (−40°C to +85°C).





FEATURES

Ideal for driving high capacitive or low resistive loads
Wide supply range: 10 V to 40 V
High output current drive: 1 A
Wide output voltage swing: 37 V swing with 40 V supply
High slew rate: 2500 V/µs
High bandwidth: 52 MHz large signal, 70 MHz small signal
Low noise: 2.1 nV/√Hz
Quiescent current: 32.5 mA
Power down: 0.75 mA
Short-circuit protection and flag
Current limit: 1.2 A
Thermal protection





APPLICATIONS

Envelope tracking
Power FET driver
Ultrasound
Piezo drivers
PIN diode drivers
Waveform generation
Automated test equipment (ATE)
CCD panel drivers
Composite amplifiers



Attribute Attribute Value
Manufacturer Analog Devices
Product Category Instrumentation Amplifier
Lifecycle-Status Production (Last Updated
Manufacturer-Lifecycle-Status PRODUCTION (Last Updated
Case-Package SOIC
Contact-Plating  Tin
Number-of-Pins 8
-3db-Bandwidth 600 MHz
Bandwidth 600 MHz
Common-Mode-Rejection-Ratio 130 dB
Dual-Supply-Voltage  5 V
Gain 1 dB
Gain-Bandwidth-Product  280 MHz
Input-Bias-Current 100 nA
Input-Capacitance  4.4 pF
Input-Offset-Voltage-Vos 230 µV
Max-Dual-Supply-Voltage 6 V
Max-Operating-Temperature 125 °C
Max-Supply-Voltage  12 V
Min-Dual-Supply-Voltage 2.25 V
Min-Operating-Temperature -40 °C
Min-Supply-Voltage  4.5 V
Nominal-Supply-Current 16.2 mA
Number-of-Amplifiers 1
Number-of-Channels 1
Number-of-Circuits 1
Number-of-Elements 1
Operating-Supply-Current  16.2 mA
Output-Current  30 mA
Output-Current-per-Channel 200 mA
Power-Supply-Rejection-Ratio-PSRR 93 dB
Quiescent-Current  14.7 mA
Schedule-B

8542330000,8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|

8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|

8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|85

Settling-Time  50 ns
Slew-Rate  310 V/µs
Voltage-Gain 80 dB
Height 1.65 mm
Length 4.9 mm
Width 3.9 mm
Lead-Free  Contains Lead
Radiation-Hardening  No
REACH-SVHC No SVHC
RoHS  Compliant
