| Place of Origin | Call |
| Brand Name | Microchip |
| Certification | ROHS |

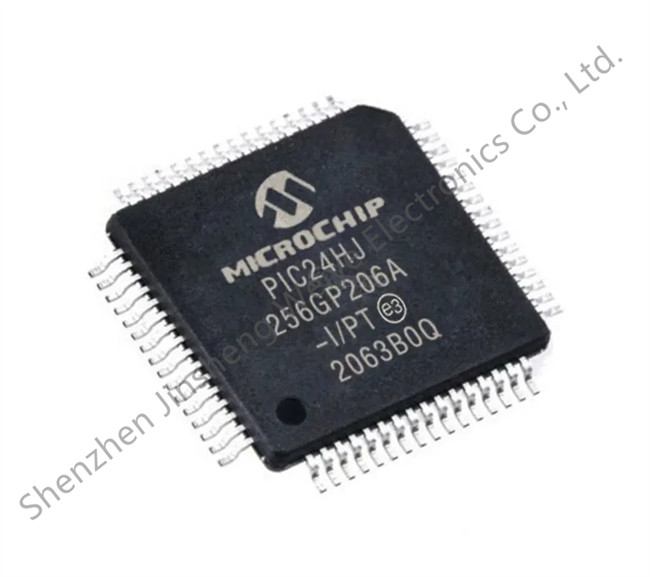

| Model Number | PIC24HJ256GP206A-I/PT |
PIC24HJ256GP206A-I/PT Datasheet
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Microcontrollers |
| Series | PIC® 24H |
| Product | MCU |
| Packaging | Tray Alternate Packaging |
| Unit-Weight | 0.012720 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 64-TQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 64-TQFP (10x10) |
| Number-of-I-O | 53 I/O |
| Speed | 40 MIPs |
| EEPROM-Size | - |
| Core-Processor | PIC |
| RAM-Size | 16K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Connectivity | I2C, IrDA, LIN, SPI, UART/USART |
| Voltage-Supply-Vcc-Vdd | 3 V ~ 3.6 V |
| Core-Size | 16-Bit |
| Program-Memory-Size | 256KB (85.5K x 24) |
| Data-Converters | A/D 18x10b/12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 3 V to 3.6 V |
| Interface-Type | I2C SPI UART |
| Core | PIC |
| Processor-Series | PIC24H |
| Data-Bus-Width | 16 bit |
| Package-Case | TQFP-64 |
| Maximum-Clock-Frequency | 40 MHz |
| Number-of-ADC-Channels | 18 ADC Channels |
| Input/output | 53 I/O |
| Data-RAM-Size | 16 kB |
| Number-of-Timers-Counters | 9 Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | RAM |
