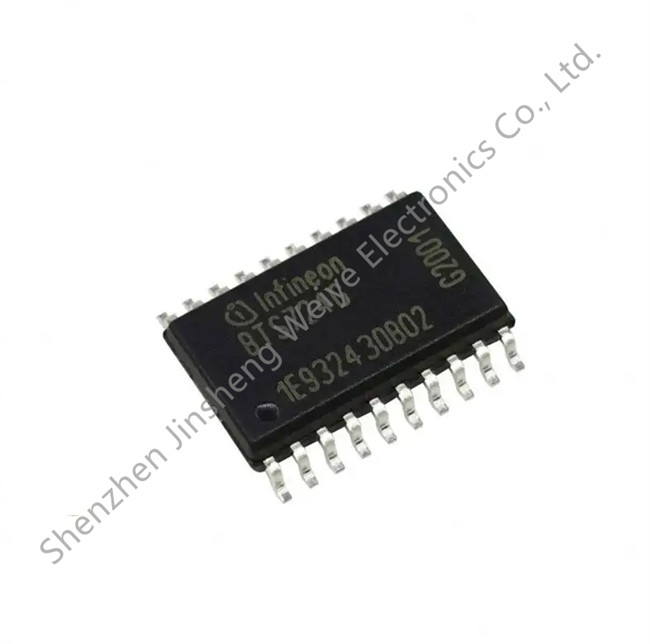

BTS724G Power Switch IC - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP
  • BTS724G Power Switch IC - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP
  • BTS724G Power Switch IC - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP

BTS724G Power Switch IC - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP

Place of Origin Call
Brand Name Infineon
Certification ROHS
Model Number BTS724G
Product Details
Product Name:
BTS724G
Condition:
Original 100%
Installation Methodpe:
Surface Sticker
Package:
SOP20
Voltage - Supply:
Ower Switch IC - Power Distribution
Max. Reverse Current:
SMART HI SIDE PWR SWITCH INDUSTRY APP
Application:
Accuracy Digital Temp Sensor
Product Description



                                          BTS724G Power Switch IC - Power Distribution SMART HI SIDE PWR SWITCH INDUSTRY APP 0BTS724G Datasheet





Specifications

Attribute Attribute Value
Manufacturer INFINEON
Product Category Power Distribution Switches, Load Drivers
Series BTS724
Product Power Switches
Type High Side
Packaging  Reel
Mounting-Style SMD/SMT
Number-of-Outputs 4 Output
Pd-Power-Dissipation 3.6 W
Maximum Operating Temperature + 150 C
Operating temperature range  - 40 C
Operating-Supply-Voltage  40 V
Output-Current  3.3 A
Part-#-Aliases BTS724GXT BTS724GXUMA1 SP000313543
Supply-Voltage-Max  40 V
Supply-Voltage-Min  5.5 V
Package-Case DSO-20
On-Resistance-Max  90 mOhms
Off-Time-Max 270 us
Current limiting  12 A
On-Time-Max 250 us
