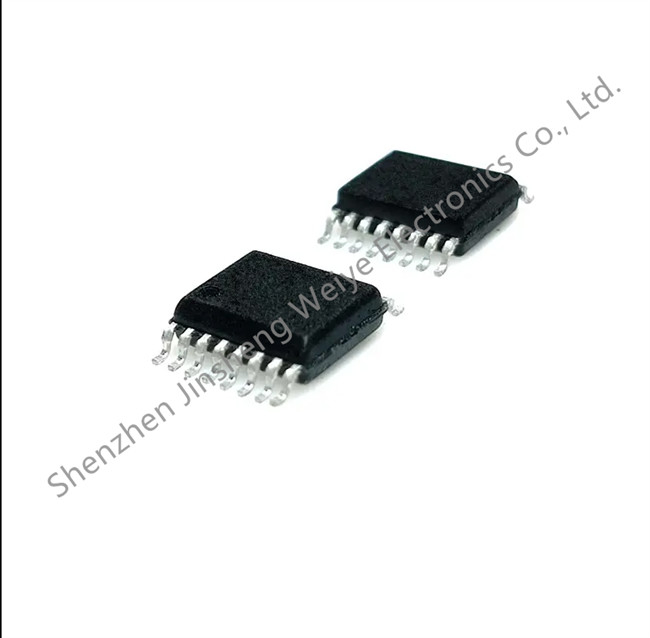

LT1712IGN Analog Comparator 2x 4.5ns R2R Comps
  • LT1712IGN Analog Comparator 2x 4.5ns R2R Comps
  • LT1712IGN Analog Comparator 2x 4.5ns R2R Comps

LT1712IGN Analog Comparator 2x 4.5ns R2R Comps

Place of Origin Call
Brand Name Analog Devices
Certification ROHS
Model Number LT1712IGN
Product Details
Product Name:
LT1712IGN
Condition:
Original 100%
Installation Methodpe:
Surface Sticker
Package:
SSOP-16
Max. Reverse Current:
Analog Comparator
Voltage - Supply:
2x 4.5ns R2R Comps
Application:
Accuracy Digital Temp Sensor
Product Description



                                          LT1712IGN Analog Comparator 2x 4.5ns R2R Comps 0LT1712IGN Datasheet



Product Details



DESCRIPTION

The LT®1711/LT1712 are UltraFastTM 4.5ns comparators featuring rail-to-rail inputs, rail-to-rail complementary outputs and an output latch. Optimized for 3V and 5V power supplies, they operate over a single supply voltage range from 2.4V to 12V or from ±2.4V to ±6V dual supplies.





FEATURES

■ Ultrafast: 4.5ns at 20mV Overdrive
5.5ns at 5mV Overdrive
■ Rail-to-Rail Inputs
■ Rail-to-Rail Complementary Outputs (TTL/CMOS Compatible)
■ Specified at 2.7V, 5V and ±5V Supplies
■ Output Latch
■ Inputs Can Exceed Supplies Without Phase Reversal
■ LT1711: 8-Lead MSOP Package
■ LT1712: 16-Lead Narrow SSOP Package





APPLICATIONS

■ High Speed Automatic Test Equipment
■ Current Sense for Switching Regulators
■ Crystal Oscillator Circuits
■ High Speed Sampling Circuits
■ High Speed A/D Converters
■ Pulse Width Modulators
■ Window Comparators
■ Extended Range V/F Converters
■ Fast Pulse Height/Width Discriminators
■ Line Receivers
■ High Speed Triggers



Specifications





Attribute Attribute Value
Manufacturer Linear Technology
Product Category Linear Comparators

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
