| Place of Origin | Call |
| Brand Name | Analog Devices |
| Certification | ROHS |

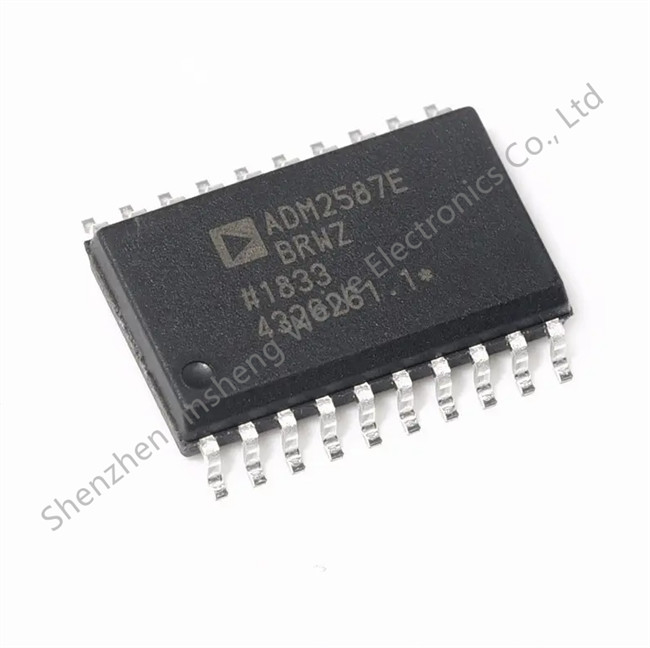

| Model Number | ADM2587EBRWZ |
The ADM2582E/ADM2587E are fully integrated signal and power isolated data transceivers with –15 kV ESD protection and are suitable for high speed communication on multipoint transmission lines. The ADM2582E/ADM2587E include an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.
They are designed for balanced transmission lines and comply with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E).
The devices integrate Analog Devices, Inc., iCouplerfi technology to combine a 3-channel isolator, a three-state differential line driver, a differential input receiver, and Analog Devices isoPower dc-to dc converter into a single package. The devices are powered by a single 5 V or 3.3 V supply, realizing a fully integrated signal and power isolated RS-485 solution.
The ADM2582E/ADM2587E driver has an active high enable. An active low receiver enable is also provided, which causes the receiver output to enter a high impedance state when disabled.
5 V or 3.3 V operation
ADM2582E data rate: 16 Mbps
ADM2587E data rate: 500 kbps
Thermal shutdown protection
Safety and regulatory approvals
VIORM = 560 V peak
VDE Certificates of Conformity
Connect up to 256 nodes on one bus
isoPowerfi integrated isolated dc-to-dc converter
±15 kV ESD protection on RS-485 input/output pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
Operating temperature range: −40°C to +85°C
Open- and short-circuit, fail-safe receiver inputs
High common-mode transient immunity: >25 kV/µs
Isolated RS-485/RS-422 transceiver, configurable as half or full duplex
UL recognition: 2500 V rms for 1 minute per UL 1577
Highly integrated, 20-lead, wide-body SOIC package
Industrial field networks
Isolated RS-485/RS-422 interfaces
Multipoint data transmission systems
