| Place of Origin | Call |
| Brand Name | Microchip Technology |
| Certification | ROHS |

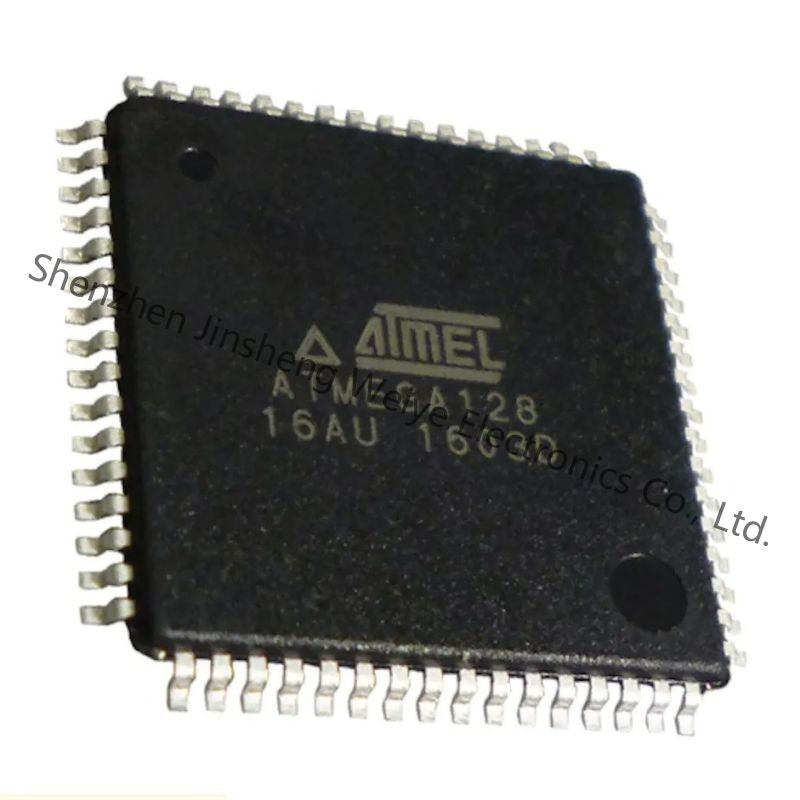

| Model Number | ATMEGA128-16AU |
The ATMEGA128-16AU is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kb EEPROM, an 8-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device supports throughput of 16 MIPS at 16MHz and operates between 4.5 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Features
High-performance, Low-power AVR® 8-Bit Microcontroller
Advanced RISC Architecture
High Endurance Non-volatile Memory Segments
QTouch® Library Support
JTAG (IEEE Standard 1149.1 Compliant) Interface
Power-on Reset and Programmable Brown-out Detection
Internal Calibrated RC Oscillator
External and Internal Interrupt Sources
Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby Sleep Modes
Software Selectable Clock Frequency
ATmega103 Compatibility Mode Selected by a Fuse
Global Pull-up Disable
0 to 16MHz Speed Grade
Application
Power Management, Communications & Networking, Consumer Electronics
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Microcontrollers |
| Series | AVR® ATmega |
| Product | MCU |
| Packaging | Tray Alternate Packaging |
| Unit-Weight | 0.012720 oz |
| Mounting-Style | SMD/SMT |
| Tradename | ATMEGA |
| Package-Case | 64-TQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 64-TQFP (14x14) |
| Number-of-I-O | 53 I/O |
| Speed | 16MHz |
| EEPROM-Size | 4K x 8 |
| Core-Processor | AVR |
| RAM-Size | 4K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Voltage-Supply-Vcc-Vdd | 4.5 V ~ 5.5 V |
| Core-Size | 8-Bit |
| Program-Memory-Size | 128KB (64K x 16) |
| Data-Converters | A/D 8x10b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 4.5 V to 5.5 V |
| Interface-Type | I2C JTAG SPI USART |
| Core | AVR |
| Processor-Series | ATmega |
| Data-Bus-Width | 8 bit |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 4.5 V |
| Package-Case | TQFP-64 |
| Maximum-Clock-Frequency | 16 MHz |
| Analog Power Supply | 2.7 V to 5.5 V |
| Number-of-ADC-Channels | 8 Channel |
| Input/output | 53 I/O |
| Data-RAM-Size | 4 kB |
| Data-ROM-Size | 4 kB |
| I-O-Voltage | 2.7 V to 5.5 V |
| Number-of-Timers-Counters | 4 Timer |
| Watchdog-Timers | Watchdog Timer |
| ADC-Resolution | 10 bit |
| Data-RAM-Type | SRAM |
| Data-ROM-Type | EEPROM |
| DAC-Resolution | - |
