| Model Number | MC56F8356VFVE |

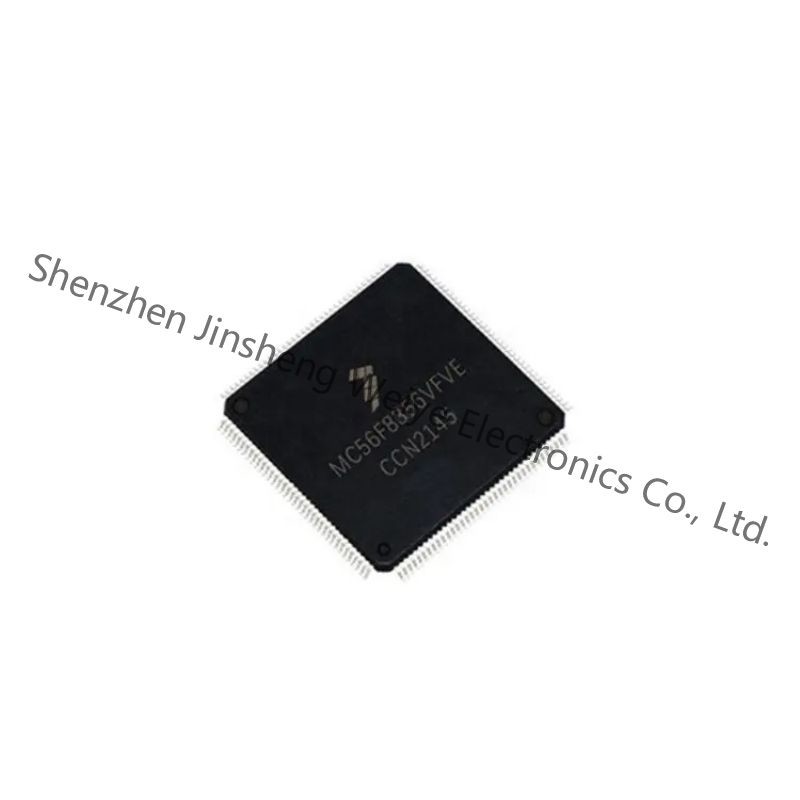

MC56F8356VFVE Digital Signal Processors and Controllers - DSP DSC 60MHz 60MIPS
The 56F8356 and 56F8156 are members of the 56800E core-based family of controllers. Each combines, on a single chip, the processing power of a Digital Signal Processor (DSP) and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution.
Features
• Efficient 16-bit 56800E family controller engine with dual Harvard architecture
• Up to 60 Million Instructions Per Second (MIPS) at 60MHz core frequency
• Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC)
• Four 36-bit accumulators, including extension bits
• Arithmetic and logic multi-bit shifter
• Parallel instruction set with unique DSP addressing modes
• Hardware DO and REP loops
• Three internal address buses
• Four internal data buses
• Instruction set supports both DSP and controller functions
• Controller style addressing modes and instructions for compact code
• Efficient C compiler and local variable support
• Software subroutine and interrupt stack with depth limited only by memory
• JTAG/EOnCE debug programming interface
Application
Because of its low cost, configuration flexibility, and compact program code, the 56F8356 and 56F8156 are well-suited for many applications. The devices include many peripherals that are especially useful for motion control, smart appliances, steppers, encoders, tachometers, limit switches, power supply and control, automotive control (56F8156 only), engine management, noise suppression, remote utility metering, industrial control for power, lighting, and automation applications.
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / NXP |
| Product Category | Microcontrollers |
| Series | 56F8xxx |
| Packaging | Tray |
| Package-Case | 144-LQFP |
| Operating-Temperature | -40°C ~ 105°C (TA) |
| Supplier-Device-Package | 144-LQFP (20x20) |
| Number-of-I-O | 62 I/O |
| Speed | 60MHz |
| EEPROM-Size | - |
| Core-Processor | 56800E |
| RAM-Size | 10K x 16 |
| Program Memory | FLASH |
| Peripherals | POR, PWM, Temp Sensor, WDT |
| Connectivity | CAN, EBI/EMI, SCI, SPI |
| Voltage-Supply-Vcc-Vdd | 2.25 V ~ 3.6 V |
| Core-Size | 16-Bit |
| Program-Memory-Size | 256KB (128K x 16) |
| Data-Converters | A/D 16x12b |
| Oscillator-Type | External |
| Mfr | Freescale Semiconductor |
| Package | Bulk |
| Product-Status | Active |
| Connectivity | CANbus EBI/EMI SCI SPI |
| Peripherals | POR PWM Temp Sensor WDT |
| Number-of-I-O | 62 |
| Program-Memory-Type | FLASH |
| Voltage-Supply-Vcc-Vdd | 2．25V ~ 3．6V |
| Mounting-Type | Surface Mount |
| Package-Case | 144-LQFP |
| Base-Product-Number | MC56F83 |
| Mfr | NXP USA Inc． |
| Package | Tray |
