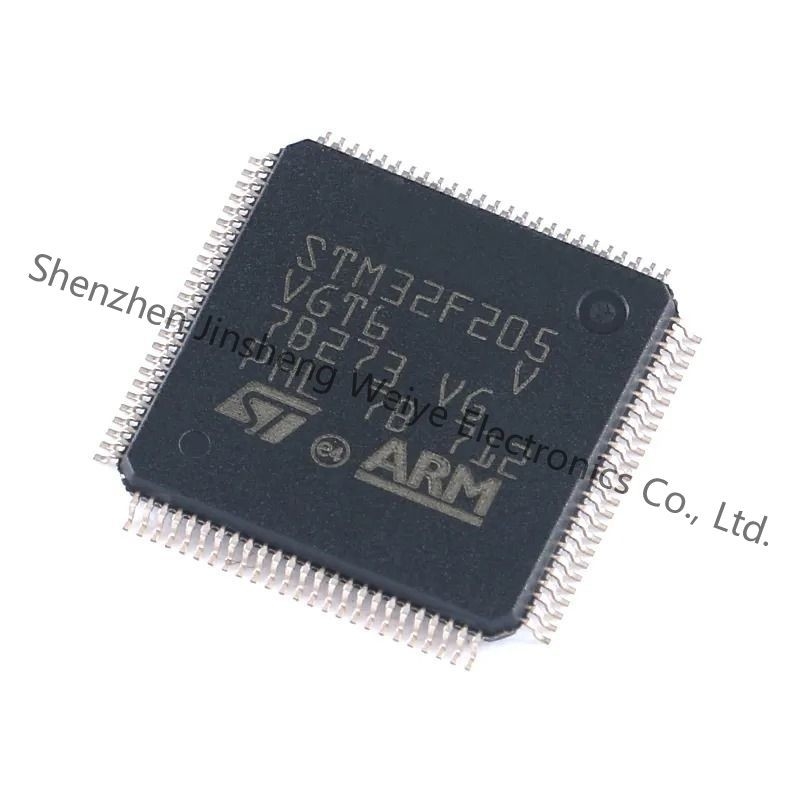

| Model Number | STM32F205VGT6 |
The STM32F20x family is based on the high-performance Arm® Cortex®-M3 32-bit RISC
core operating at a frequency of up to 120 MHz. The family incorporates high-speed
embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up
to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals
connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
Core: Arm® 32-bit Cortex®-M3 CPU (120 MHz
max) with Adaptive real-time accelerator (ART
Accelerator™) allowing 0-wait state execution
performance from Flash memory, MPU,
150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
Memories
– Up to 1 Mbyte of Flash memory
– 512 bytes of OTP memory
– Up to 128 + 4 Kbytes of SRAM
– Flexible static memory controller that
supports Compact Flash, SRAM, PSRAM,
NOR and NAND memories
– LCD parallel interface, 8080/6800 modes
Clock, reset and supply management
– From 1.8 to 3.6 V application supply + I/Os
– POR, PDR, PVD and BOR
– 4 to 26 MHz crystal oscillator
– Internal 16 MHz factory-trimmed RC
– 32 kHz oscillator for RTC with calibration
– Internal 32 kHz RC with calibration
Low-power modes
– Sleep, Stop and Standby modes
– VBAT supply for RTC, 20 × 32 bit backup
registers, and optional 4 Kbytes backup
SRAM
3 × 12-bit, 0.5 µs ADCs with up to 24 channels
and up to 6 MSPS in triple interleaved mode
2 × 12-bit D/A converters
General-purpose DMA: 16-stream controller
with centralized FIFOs and burst support
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Microcontrollers |
| Series | STM32 F2 |
| Packaging | Tray |
| Unit-Weight | 0.046530 oz |
| Mounting-Style | SMD/SMT |
| Tradename | STM32 |
| Package-Case | 100-LQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 100-LQFP (14x14) |
| Number-of-I-O | 82 I/O |
| Speed | 120MHz |
| EEPROM-Size | - |
| Core-Processor | ARMR CortexR-M3 |
| RAM-Size | 132K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Connectivity | CAN, I2C, IrDA, LIN, MMC, SPI, UART/USART, USB OTG |
| Voltage-Supply-Vcc-Vdd | 1.8 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 1MB (1M x 8) |
| Data-Converters | A/D 16x12b; D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.8 V to 3.6 V |
| Interface-Type | 2xCAN 2xUART 3xI2C 3xSPI 4xUSART SDIO |
| Core | ARM Cortex M3 |
| Processor-Series | ARM Cortex-M |
| Data-Bus-Width | 32 bit |
| Package-Case | LQFP-100 |
| Maximum-Clock-Frequency | 120 MHz |
| Input/output | 16 I/O |
| Data-RAM-Size | 128 kB |
| Data-ROM-Size | 512 B |
| Number-of-Timers-Counters | 10 Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
