| Place of Origin | Call |
| Brand Name | STMicroelectronics |
| Certification | ROHS |

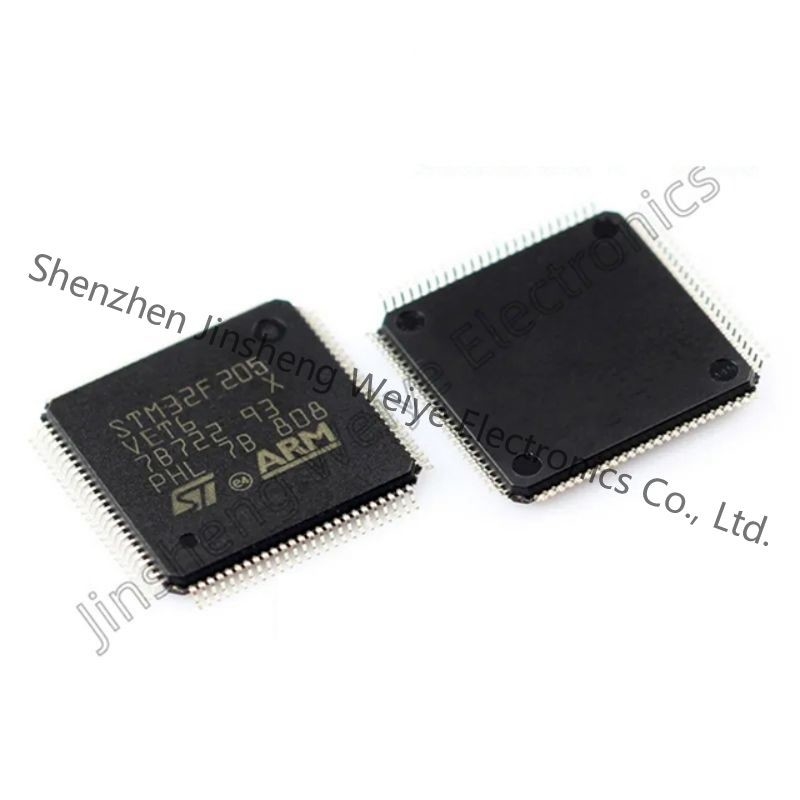

| Model Number | STM32F205VET6 |
The STM32F20x family is based on the high-performance ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 120 MHz. The family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 128 Kbytes of system SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses and a 32-bit multi-AHB bus matrix.
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Microcontrollers |
| Series | STM32 F2 |
| Packaging | Tray |
| Unit-Weight | 0.046530 oz |
| Mounting-Style | SMD/SMT |
| Tradename | STM32 |
| Package-Case | 100-LQFP |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Supplier-Device-Package | 100-LQFP (14x14) |
| Number-of-I-O | 82 I/O |
| Speed | 120MHz |
| EEPROM-Size | - |
| Core-Processor | ARMR CortexR-M3 |
| RAM-Size | 132K x 8 |
| Program Memory | FLASH |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Connectivity | CAN, I2C, IrDA, LIN, MMC, SPI, UART/USART, USB OTG |
| Voltage-Supply-Vcc-Vdd | 1.8 V ~ 3.6 V |
| Core-Size | 32-Bit |
| Program-Memory-Size | 512KB (512K x 8) |
| Data-Converters | A/D 16x12b; D/A 2x12b |
| Oscillator-Type | Internal |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.8 V to 3.6 V |
| Interface-Type | CAN I2C I2S SPI UART USB |
| Core | ARM Cortex M3 |
| Processor-Series | ARM Cortex-M |
| Data-Bus-Width | 32 bit |
| Package-Case | LQFP-100 |
| Maximum-Clock-Frequency | 120 MHz |
| Number-of-ADC-Channels | 16 ADC Channels |
| Input/output | 82 I/O |
| Data-RAM-Size | 128 kB |
| Data-ROM-Size | 512 B |
| Number-of-Timers-Counters | 14 Timer |
| ADC-Resolution | 12 bit |
| Data-RAM-Type | SRAM |
