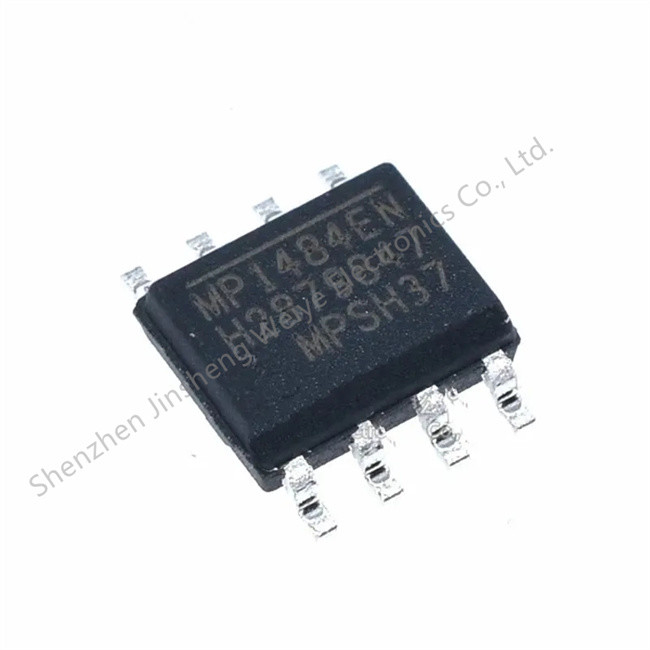

MP1484EN Switching Regulator 3A 18V Synchronous Step Down DCDC
  • MP1484EN Switching Regulator 3A 18V Synchronous Step Down DCDC
  • MP1484EN Switching Regulator 3A 18V Synchronous Step Down DCDC

MP1484EN Switching Regulator 3A 18V Synchronous Step Down DCDC

Place of Origin Call
Brand Name MPS
Certification ROHS
Model Number MP1484EN
Product Details
Product Name:
MP1484EN
Condition:
Original 100%
Installation Methodpe:
Surface Sticker
Package:
SOP8
Voltage - Supply:
Witching Regulator 3A
Max. Reverse Current:
18V Sync Step-Down DCDC
Application:
Accuracy Digital Temp Sensor
High Light:

MP1484EN Switching Regulator

,

18V Synchronous Buck Regulator

Product Description

 MP1484EN Switching Regulator 3A, 18V Sync Step-Down DCDC

                                                      MP1484EN Switching Regulator 3A 18V Synchronous Step Down DCDC 0MP1484EN Datasheet

Product Details



DESCRIPTION

The MP1484 is a monolithic synchronous buck regulator. The device integrates top and bottom 85mΩ MOSFETS that provide 3A of continuous load current over a wide operating input voltage of 4.75V to 18V. Current mode control provides fast transient response and cycle-by-cycle current limit.
An adjustable soft-start prevents inrush current at turn-on and in shutdown mode, the supply current drops below 1µA.
The MP1484 is PIN compatible to the MP1482 2A/18V/Synchronous Step-Down Converter.





FEATURES

• 3A Continuous Output Current
• Wide 4.75V to 18V Operating Input Range
• Integrated 85mΩ Power MOSFET Switches
• Output Adjustable from 0.925V to 20V
• Up to 95% Efficiency
• Programmable Soft-Start
• Stable with Low ESR Ceramic Output Capacitors
• Fixed 340KHz Frequency
• Cycle-by-Cycle Over Current Protection
• Input Under Voltage Lockout
• Thermally Enhanced 8-Pin SOIC Package





APPLICATIONS

• FPGA, ASIC, DSP Power Supplies
• LCD TV
• Green Electronics/Appliances
• Notebook Computers



Specifications

Attribute Attribute Value
Manufacturer Monolithic Power Systems
Product Category DC Switching Regulators
