| Place of Origin | Call |
| Brand Name | Analog Devices |
| Certification | ROHS |
| Model Number | ADUM4160BRWZ |

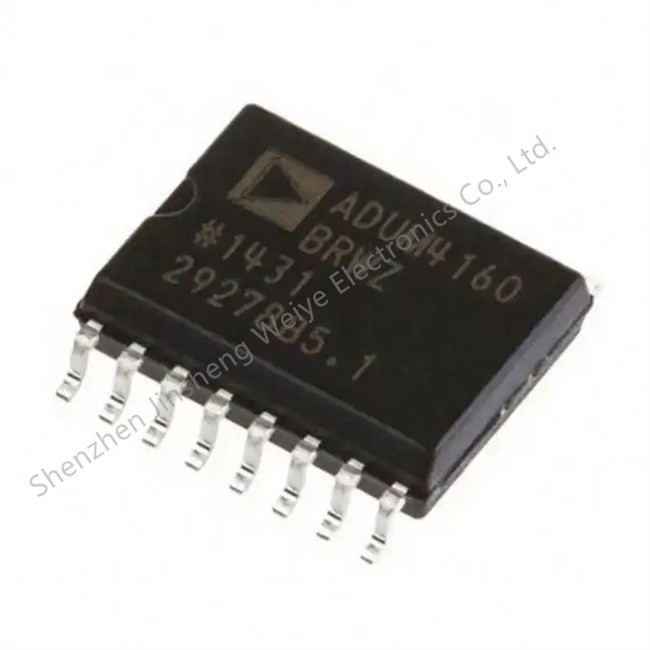

ADUM4160BRWZ Digital Isolator Full/Low Speed USB Digital Isolator
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Digital Isolators |
| Series | iCoupler® |
| Product | Digital Isolators |
| Type | USB |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.023492 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-SOIC (0.295", 7.50mm Width) |
| Technology | Magnetic Coupling |
| Operating-Temperature | -40°C ~ 105°C |
| Number-of-Channels | 2 Channels |
| Voltage-Supply | 3.1 V ~ 5.5 V |
| Supplier-Device-Package | 16-SOIC |
| Data-Rate | 12Mbps |
| Channel-Type | Bidirectional |
| Voltage-Isolation | 5000Vrms |
| Shutdown | No Shutdown |
| Rise-Fall-Time-Typ | 20ns, 20ns (Max) |
| Isolated-Power | No |
| Inputs-Side-1-Side-2 | 2016/2/2 0:00:00 |
| Common-Mode-Transient-Immunity-Min | 25kV/μs |
| Propagation-Delay-tpLH-tpHL-Max | 70ns, 70ns |
| Pulse Width | - |
| Maximum Operating Temperature | + 105 C |
| Operating temperature range | - 40 C |
| Polarity | Bidirectional |
| Isolation-Type | Magnetic Coupling |
| Operating-Supply-Current | 6 mA |
| Isolation-Voltage | 5 kVrms |
| Protocol-Supported | USB 2.0 |
| Supply-Voltage-Max | 5.5 V |
| Supply-Voltage-Min | 3.1 V |
| Package-Case | SOIC-16 |
| Propagation Delay | 70 ns |
| Forward-Channels | 2 Channel |
| Maximum-Fall-Time | 300 ns |
| Maximum-Rise-Time | 300 ns |
| Reverse-Channels | 2 Channel |
