| Place of Origin | Call |
| Brand Name | Texas Instruments |
| Certification | ROHS |

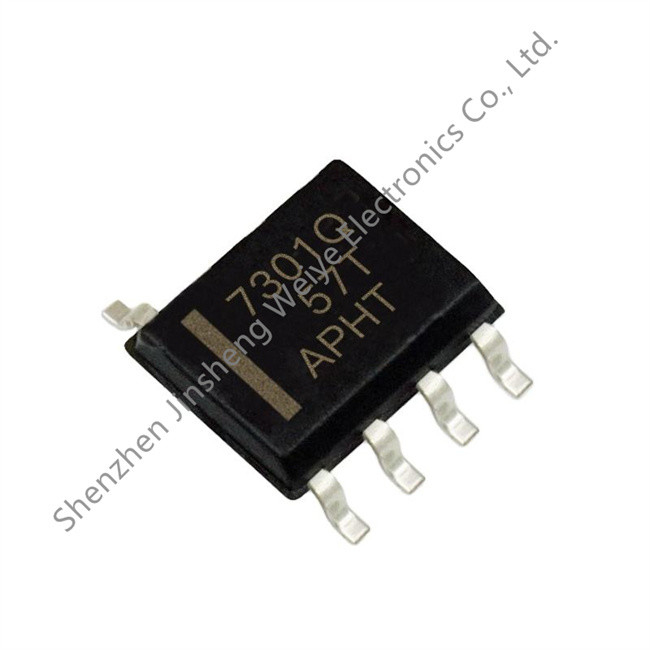

| Model Number | TPS7301QDR |
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | TPS7301 |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.002677 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | 8-SOIC |
| Voltage-Input | 2.47 V ~ 10 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 500mA |
| Voltage-Output | 1.2 V ~ 9.75 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.27V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Pd-Power-Dissipation | 0.725 W |
| Maximum Operating Temperature | + 125 C |
| Operating temperature rang | - 40 C |
| Output-Voltage | 1.2 V to 9.75 V |
| Input-Voltage-MAX | 10 V |
| Output-Current | 500 mA |
| Input-Voltage-MIN | + 2.47 V |
| Load-Regulation | 22 mV |
| Voltage-Regulation-Accuracy | 3 % |
| Package-Case | SOIC-8 |
| Ib-Input-Bias-Current | 340 uA |
| Reference-Voltage | 1.182 V |
| Dropout-Voltage | 0.146 V at 500 mA |
| Dropout-Voltage-Max | 170 mV at 500 mA |
| Line-Regulation | 18 mV |
