| Place of Origin | Call |
| Brand Name | Texas Instruments |
| Certification | ROHS |
| Model Number | TPS1HA08BQPWPRQ1 |
The Texas Instruments TPS1HA08BQPWPRQ1 is a high-efficiency, low-power, small form factor power switch. This power switch is designed to provide reliable power while minimizing form factor size. It is capable of driving loads up to 2A, making it ideal for applications requiring high current. The device is capable of handling high inrush currents up to 15A with a typical turn-on time of less than 0.7µs. It has an input voltage range of 4.5V to 18V and an output voltage range of 0.45V to 18V. The TPS1HA08BQPWPRQ1 also has built-in over-current and over-temperature protection. It is available in a tiny 3mm x 3mm LLP (Low Lead Package) package, making it the perfect choice for space-constrained applications.
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Power Distribution Switches, Load Drivers |
| Mfr | Texas Instruments |
| Series | Automotive AEC-Q100 |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Product-Status | Active |
| Switch-Type | General Purpose |
| Number-of-Outputs | 1 |
| Ratio-Input | Output |
| Output-Configuration | High Side |
| Output-Type | N-Channel |
| Interface | On/Off |
| Voltage-Load | 8V ~ 18V |
| Voltage-Supply-Vcc-Vdd | Not Required |
| Current-Output-Max | 80A |
| Rds-On-Typ | 9mOhm |
| Input-Type | Inverting |
| Features | Slew Rate Controlled |
| Fault-Protection | Current Limiting (Adjustable) Open Load Detect Over Temperature UVLO |
| Operating-Temperature | -40°C ~ 125°C (TA) |
| Mounting-Type | Surface Mount |

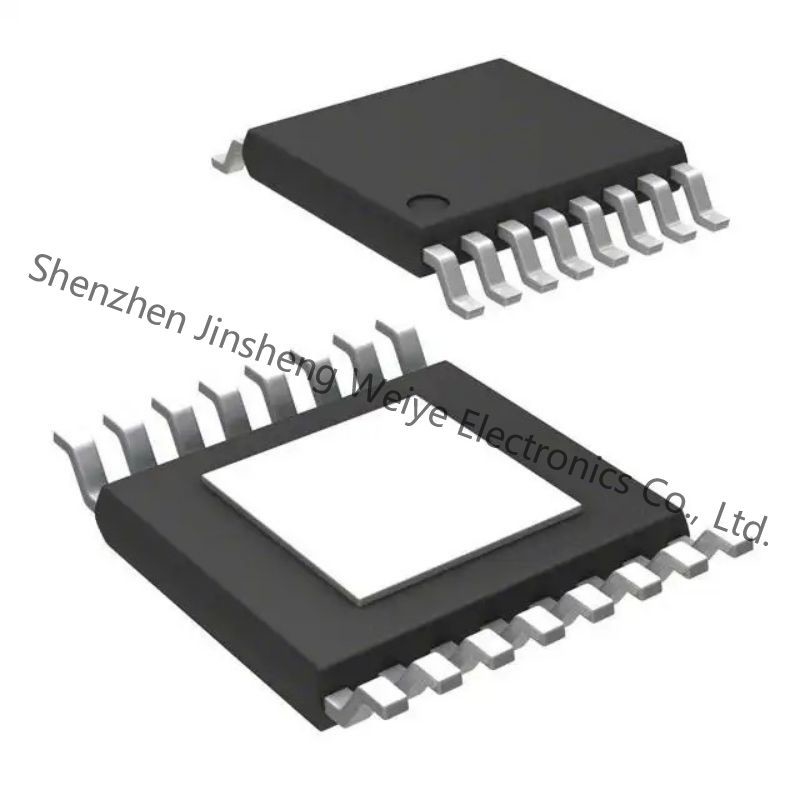

| Supplier-Device-Package | 16-HTSSOP |
| Package-Case | 16-PowerTSSOP (0．173" 4．40mm Width) |
| Base-Product-Number | TPS1HA08 |
