| Place of Origin | Call |
| Brand Name | onsemi |
| Certification | ROHS |
| Model Number | NCV8405ADTRKG |

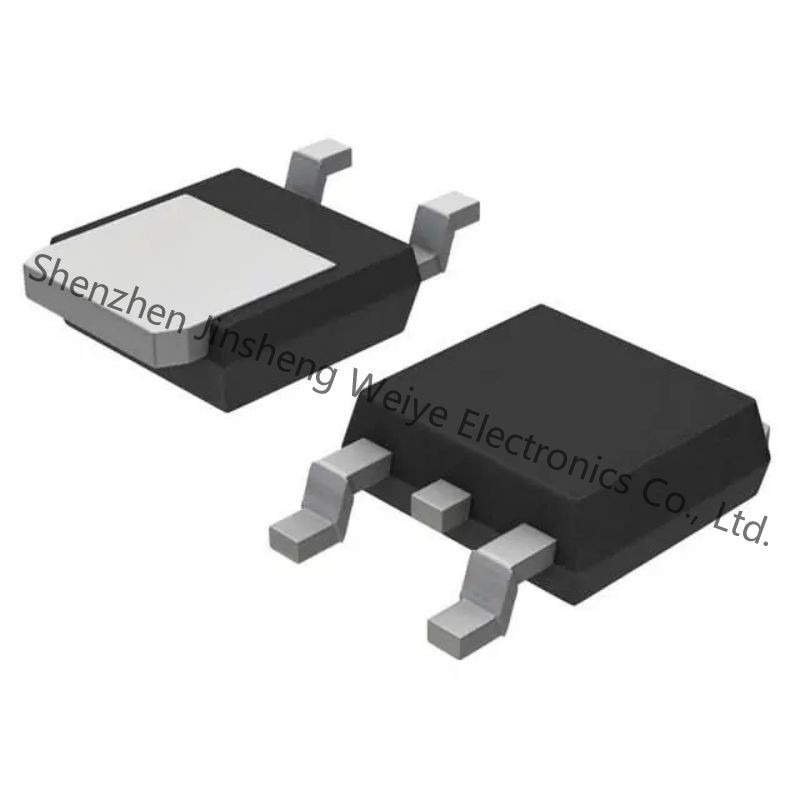

NCV8405/A is a three terminal protected Low−Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain−to−Gate clamping for overvoltage protection. This device is suitable for harsh automotive environments.
• Short−Circuit Protection
• Thermal Shutdown with Automatic Restart
• Overvoltage Protection
• Integrated Clamp for Inductive Switching
• ESD Protection
• dV/dt Robustness
• Analog Drive Capability (Logic Level Input)
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
• Switch a Variety of Resistive, Inductive and Capacitive Loads
• Can Replace Electromechanical Relays and Discrete Circuits
• Automotive / Industrial
| Attribute | Attribute Value |
|---|---|
| Manufacturer | ON Semiconductor |
| Product Category | Power Distribution Switches, Load Drivers |
| Series | Automotive, AEC-Q101 |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.139332 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Technology | Si |
| Input-Type | Non-Inverting |
| Operating-Temperature | -40°C ~ 150°C (TJ) |
| Output-Type | N-Channel |
| Features | Auto Restart |
| Number-of-Channels | 1 Channel |
| Interface | On/Off |
| Supplier-Device-Package | DPAK-3 |
| Ratio of output to input | 1899/12/30 1:01:00 |
| Number-of-Outputs | 1 Output |
| Voltage-Supply-Vcc-Vdd | Not Required |
| Fault-Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Output-Configuration | Low Side |
| Rds-On-Typ | 90 mOhm |
| Voltage-Load | 42V (Max) |
| Current-Output-Max | 6A |
| Switch-Type | General Purpose |
| Transistor-Type | 1 N-Channel |
| Pd-Power-Dissipation | 1.7 W |
| ID (drain current) | 6 A |
| Vds-Drain-Source-Breakdown-Voltage | 51 V |
| Rds-On-Drain-Source-Resistance | 90 mOhms |
| Transistor-Polarity | N-Channel |
