| Place of Origin | Call |
| Brand Name | Microchip Technology |
| Certification | ROHS |

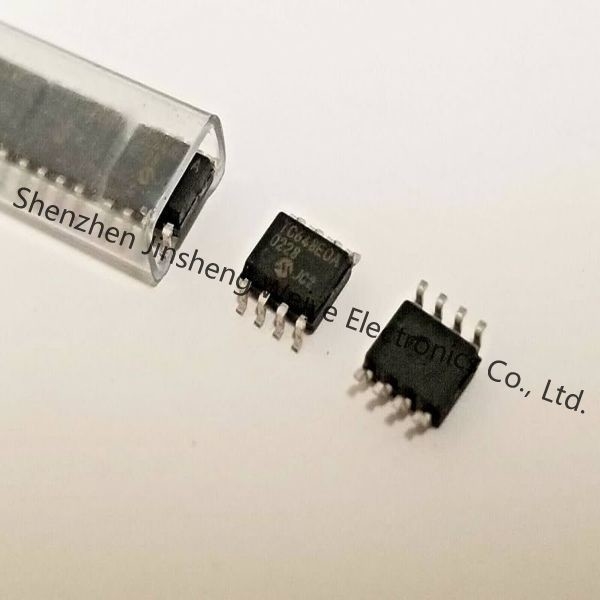

| Model Number | TC648EOA |
TC648EOA Datasheet• Temperature Proportional Fan Speed for Acoustic Control and Longer Fan Life
• Efficient PWM Fan Drive
• 3.0V to 5.5V Supply Range:
- Fan Voltage Independent of TC648 Supply Voltage
- Supports any Fan Voltage
• Over-temperature Fault Detection
• Automatic Shutdown Mode for “Green” Systems
• Supports Low Cost NTC/PTC Thermistors
• Space Saving 8-Pin MSOP Package
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Motor Drivers and Controllers |
| Series | - |
| Product | Fan / Motor Controllers / Drivers |
| Type | Controller - PWM Fan |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Operating-Temperature-Range | - 40 C to + 85 C |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Technology | - |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Function | Controller - Speed |
| Applications | Fan Controller |
| Interface | Parallel |
| Voltage-Supply | 3 V ~ 5.5 V |
| Supplier-Device-Package | 8-SOIC |
| Current-Output | - |
| Output-Configuration | Pre-Driver - Low Side |
| Voltage-Load | - |
| Motor-Type-Stepper | - |
| Motor-Type-AC-DC | Brushless DC (BLDC) |
| Resolution | - |
| Operating-Supply-Voltage | 3 V to 5.5 V |
| Operating-Supply-Current | 400 uA |
| Package-Case | SOIC-8 |
Form,Package,Functional compatible component
